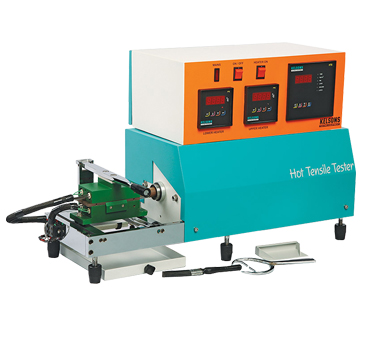

HOT TENSILE TESTER

| Back



USE : It is use to determine Tensile Strength of shell sand in hot condition.

SPECIFICATIONS :
• Teflon coated Two Hot Plates, Controlled By Digital Temperature Indicator And Controller (0 - 300oc).
• Loading and unloading mechanisms operated by manually and auto by electronic control.
• Digital Pressure Indicator to read tensile strength up to 55 kg/cm2.
• Load Cell.
• Hard crome plated tensile Jaw set.
• Waste sand collection tray.
• Jaw Lifting tongue.
• Sand Filler Cum Scrapper
• Cleaning Brush.
• Working on 230 volt, 50 cycles, 1.6 Kw AC Power Supply.


Dimensions and Weights (Approximate)
Length  :  191 mm (7.5")
Width    :  241 mm (9.5")
Height   :  559 mm (22")
Weight  :  22.7 kgs.





Attachment For HOT TENSILE TESTER

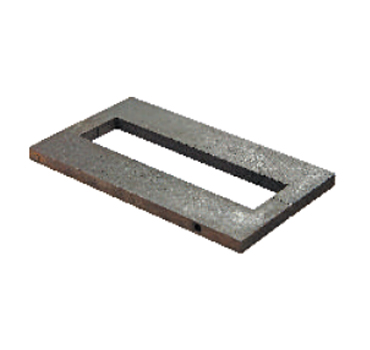

Cold Shell Tensile

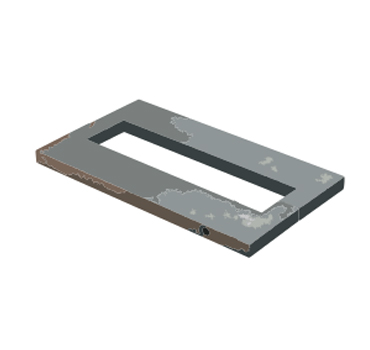

Shell Transverse Tester
