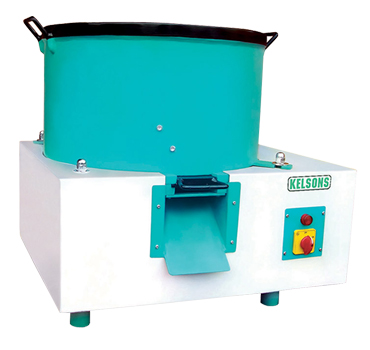

SAND MULLERS

| Back



USE : It is use to mixing mulling purpose of Green Sand

SPECIFICATIONS : The Laboratory Muller is used to prepare mixtures of clay bonded foundry sands. The muller have two vertical mulling rollars on independent suspensions.

Plows turn over fresh material into the path of the rollers. The Rollar and plow height can be adjusted by a adjusting screw.

SAND MULLING CAPACITY :
2 or 5 Kg, Geared Motor : 1 HR, with water sprinkling system.




Dimensions and Weights (Approximate)

For 2Kg
Length  :  510 mm (20")
Width    :  460 mm (18")
Height   :  510 mm (20")
Weight  :  72.5 kgs.

For 5 Kg
Length  :  630 mm (25")
Width    :  510 mm (20")
Height   :  585 mm (23")
Weight  :  129 kgs.
