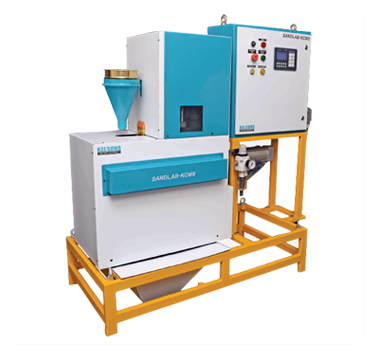

STATIC SAND CONTROL SYSTEM

| Back



USE : It is use to instantly determine COMPACTIBILITY %, MOISTURE %, GREEN COMPRESSION STRENGTH of foundry green sand .

SPECIFICATIONS : We have developed combine model as per foundry requirements. This equipment is robust designed for foundry applications. Complete automation to test Compactibility %, Moisture %, Green Compression Strength . This equipment is electro-pneumatic operated equipment and PLC controlled.

Procedure is very simple, user friendly and time saving. Fill the sand sample through sieve attached on equipment . Press the Start button of control Panel . Auto cycle will start and step by step Compactibility Test, Moisture Test and GCS test will completed by equipment within 30 second. All readings are displayed on screen .


Dimensions and Weights (Approximate)
Electric Connection : 230 Volts AC Supply, 50 Hz.
Pneumatic Pressure : 5 Kg/cm2
Dimension in mm : L x B x H = 1370 x 610 x 1580
Weight : 155 Kgs
