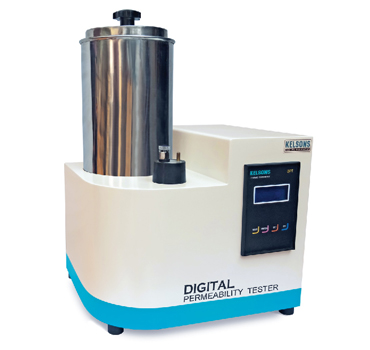

DIGITAL PERMEABILITY TESTER

| Back



USE : It is use to determine porosity in Raw sand, Green, No bake sand with digital Readout

DESCRIPTION : The Digital permeability Tester measure the permeability of a standard specimen Dia.50mm X 50mm. This tester is semi automatic. Simply place the specimen on the rubber Pedestal and press start. As the Air drum falls, A high precision pressure sensor measures the pressure. Permeability is determined by measuring the differential pressure passed throught the sand Specimen. The permeability result automatic calculated and Show on LED Display. The Digital Permeability Tester includes, Control Unit with 4 Lines LCD Display, Imported Pressure transmitter, Flow control by solenoid Valve, Overpressure Protection, Large Orifice, Small Orifice, Water Tank, Air Tank.


FEATURES : More Accurate reading than Electric Permeability, Permeability Number and Air Pressure readable on display at a time, No Calculation, No conversion, Easy to operate, Easy to Calibrate, Current Operation indication on display, Over Pressure Buzzer


Electric Connection : 230 Volts, AC , 50 Hz
Dimension in mm : L x B x H = 400 x 330 x 560
Weight : 14 Kg
