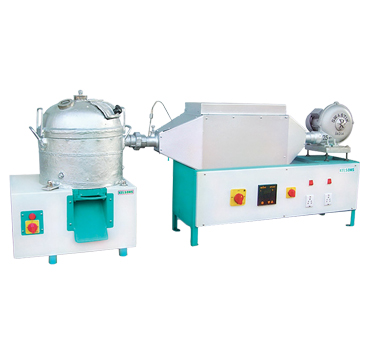

HOT AIR BLOWER MIXERS

| Back



USE : It is use to prepare shell sand in hot condition to check the resin Properties under standard condition.

SPECIFICATIONS : Mixture - Cap. - 5Kg ( Batch ), Motor with Gear Box1/2 HP Single Phase, Scraper - 2 Nos., window to see the inside process Heating unit - 6 Kw, Blower - ¼ hp single phase, 230 AC volts.


Dimensions and Weights (Approximate)
Length  :  1270 mm (50")
Width    :  460 mm (18")
Height   :  760 mm (30")
Weight  :  125 kgs.
