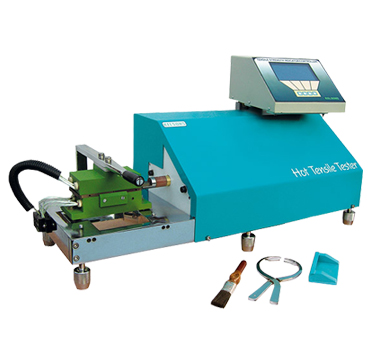

HOT SHELL TENSILE TESTER (COMPUTER INTERFACE)

| Back



USE : It is use to determine Tensile Strength of shell sand in hot condition.

SPECIFICATIONS :
• Teflon coated Two Hot Plates, Controlled By Digital Temperature Indicator And Controller ( 0-300oc ).
• Loading and unloading mechanisms operated by manually and auto by electronic control.
• Digital Pressure Indicator to read tensile strength up to 55 kg/cm2.
• Load Cell. With computer interface, with data wireless communication, printer output facility advance display Memory storage etc.
• Hard crome plated tensile Jaw set.
• Waste sand collection tray.
• Jaw Lifting tongue.
• Sand Filler Cum Scrapper
• Cleaning Brush.
• Working on 230 volt, 50 cycle, 1.6 Kw AC Power Supply.

Dimensions and Weights (Approximate)
Length : 91 mm (7.5")
Width : 241 mm (9.5")
Height : 559 mm (22")
Weight : 22.7 kgs.





Attachment For HOT SHELL TENSILE TESTER (COMPUTER INTERFACE)

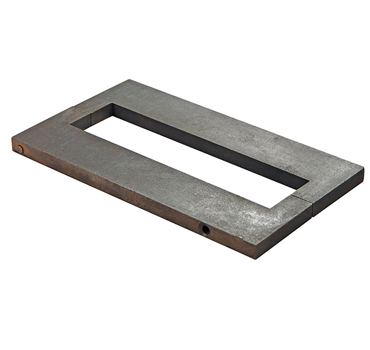

Shell Transverse Tester



Cold Shell Tensile Tester
